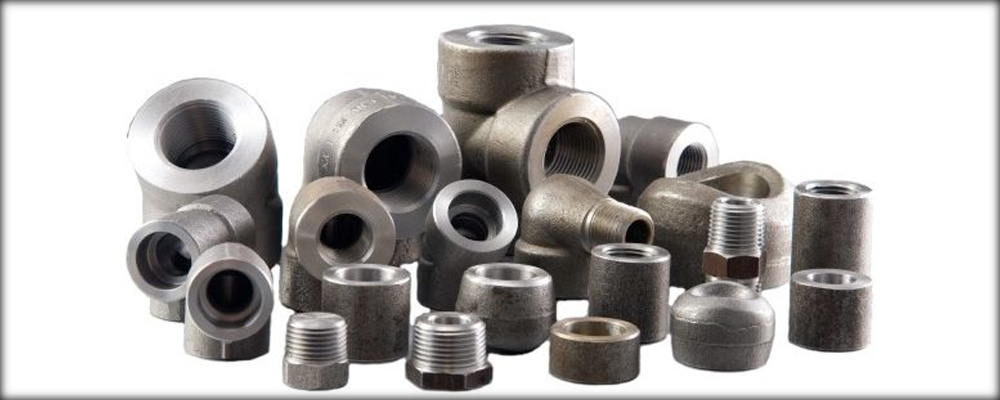

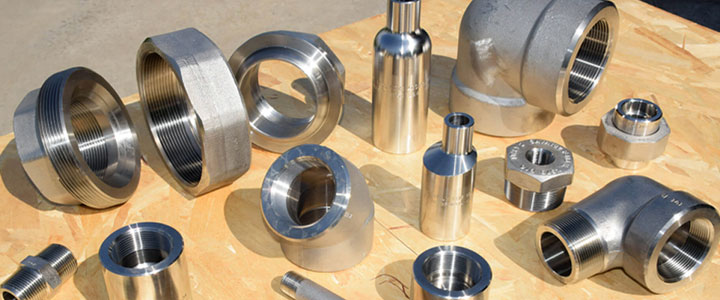

What is Forged Fitting?
Forged Fittings are used for associating or connecting pipes, pimps, valves & other equipments to create a piping system below the size of 2 or 4 inches in diameter. There are mainly two types of forged fittings called socket-weld fittings which are connected to pipes by fillet welds and second one is threaded fittings in which the pipe is screwed onto the fittings. Forged Fitting joints are made by bolting together two Forged fittings with a gasket between them to give a seal.
Standard Specification for Forged Fittings
- Range :15 NB to 100 NB x 2000# to 9000#
- Form :Socket weld/Threaded – Elbow, Tee, Cross, Reducer, Coupling, cap, Hex Nipple, Hex Plug, Round Plug, Square Plug, Bushing, Union, Weldolet, Threadolet, Sockolet, Elbolet, Nipolet, Flageolet, Latrolet, Sweepolet etc
Material of Construction in Forged Fittings
-
Stainless Steel Forged Fitting SpecificationsGrades: ASTM A182 & ASME SA182 GR F201, F202, F301, F302, F304, F304L, F309, F310, F316, F316L, F316LN, F316Ti, F317L, F321, F347, 405, 409, 410, 420, 430, 440C, F904L
-
Duplex Stainless Steel Forged Fitting SpecificationsGrades: ASTM A182 & ASME SA182 GR 2205 (F51, S31803 / F60, S32205), SMO254 (F44, S32154), 2507 (F53, S32750 / F55, S32760), Ferralium 255 (F61 S32550) etc
-
Carbon Steel Forged Fitting SpecificationsGrades: ASTM A105 / A350 Gr. LF2, LF3, ASTM A694 – F42, F46, F48, F50, F52, F56, F60, F65, F70.
-
Alloy Steel Forged Fitting SpecificationsGrades: ASTM A182 & ASME SA182 GR F1, F5, F9, F11, F12, F22, F91
-
High Nickel Alloy Forged Fitting SpecificationsGrades:ASTM B564 / A182 GR 200 (N02200), 201 (N02201), Alloy 20 (F20, N08020), 600 (N06600), 601 (N06601), 625 (N06625), 718 (N07718), 800 (N08800), 800H (N08810), 800HT (N08811), 825 (N08825), 904L (N08904), 400 (N04400), 500 (N05500), C726 (N10276), C4 (N06455), C22 (N06022), C2000 (N06200), X (N06002), B2 (N10665), B3 (N10675).
-
Alloy 20 Forged Fitting SpecificationsGrades: ASTM B462 & ASME B462 GR Alloy 20 (N08020)
-
Titanium Forged Fitting SpecificationsGrades: ASTM B366 / ASME SB366 GR. C726 (WPHC276, N10276), C4 (WPHC4, N06455), C22 (WPHC22, N06022), C2000 (WPHC2000, N06200), X (WPHX, N06002), B2 (WPHB-2, N10665), B3 (WPHB-3, N10675)
-
Copper & Copper Alloy Forged Fitting SpecificationsGrades:ASTM B122, B171, B466, B467 Commercial, ETP, OFE, CuNi 90/10 (C70600), CuNi 70/30 (C71500), Brass, Naval Brass, Aluminium Bronze, Admiralty Brass.
